Common Moulding and Casting Mistakes and How to Avoid Them

Moulding and casting involve two linked processes. A fault in the mould can appear in every casting made from it, while a good mould can still produce poor results if the casting material is measured or handled incorrectly. Taking time over selection, preparation and records helps prevent repeated waste.

Choosing a material before defining the project

Moulding rubbers, putties, mould-making products and mineral casting compounds are not interchangeable. Start with the master object and the finished casting you want to produce, then compare the current instructions for suitable materials.

When browsing the Moulding and Casting collection, consider:

• the size and shape of the master;
• whether it has deep recesses or undercuts;
• the level of surface detail required;
• the intended casting material;
• the number of castings you hope to make;
• the working space and equipment available;
• the manufacturer’s safety and handling requirements.

Do not choose solely by pack size or by a photograph of another project. Where compatibility or suitability is unclear, ask the supplier or complete an appropriate small test.

Assuming every master can be moulded as it is

A master object may be porous, fragile, flexible, textured or made from a material that interacts with the mould-making system. Dust, grease, loose paint and moisture can also transfer into the mould or spoil fine detail.

Inspect the master carefully and follow the mould-material instructions for preparation. If sealing or release treatment is required, choose products confirmed for the master, mould material and casting process. Do not apply a familiar sealer or release agent without checking that complete combination.

Remember that the mould records surface detail faithfully. Scratches, fingerprints, adhesive marks and unfinished seams on the master may become features of every casting.

Ignoring undercuts and the direction of release

A master may look simple from above while hiding an edge that locks it into the cured mould. Deep undercuts, narrow necks and projecting details can make removal difficult or damage the mould.

Before building a mould box, decide how the master will enter and leave the finished mould. Identify the likely parting line and consider whether the design needs one mould section or several. Complex pieces may require a different method from a straightforward open-face mould.

Do not rely on stretching alone to solve every release problem. Review the manufacturer’s guidance and seek experienced technical advice for shapes that may lock in place.

Building a mould box that is weak or poorly sealed

A mould box has to maintain its shape and contain the mixed material. Gaps, flexible walls or a master that is not secured correctly can lead to leaks, movement or uneven mould thickness.

Dry-assemble the complete box first. Check the base, corners and joins from every side. The master should remain in its planned position without unsuitable adhesive or fixings touching important details.

Complete a pre-mix check

1. Confirm the master is prepared as directed.
2. Check the planned release direction and parting line.
3. Measure the space around the master.
4. Secure the mould box and inspect every join.
5. Place the box on a rigid, level surface.
6. Prepare all measuring and mixing equipment.
7. Read the material instructions from beginning to end.

Once the components are combined, stopping to rebuild the box is usually too late.

Guessing how much mould material is needed

Mixing too little may leave part of the master exposed. A large excess wastes material and creates unnecessary disposal.

Estimate the mould volume from the internal dimensions of the box and the space displaced by the master, using a method appropriate for the materials involved. Include the mould thickness required by the manufacturer rather than placing the master close to a wall simply to reduce quantity.

Products such as Alumilite Amazing Mold Rubber in the 3/4 lb size have a stated pack quantity, but that does not reveal whether one pack suits a particular mould. Compare the project calculation with the current product guidance before starting.

Measuring by the wrong method

Some systems specify proportions by weight, others by volume, and the two must not be treated as interchangeable. A ratio given by volume cannot automatically be copied onto scales because components may have different densities.

Follow the method stated for the exact product. Use suitable equipment, account for the empty vessel correctly and keep measuring tools clean. Small batches demand particular care because a modest error represents a larger proportion of the mixture.

The same principle applies to casting materials. Never use remembered figures from another resin, rubber, putty or mineral compound.

Mixing quickly but incompletely

Fast stirring can introduce more air without ensuring that material around the sides and bottom is incorporated. A few gentle turns are not enough either.

Use a suitably shaped tool and follow the manufacturer’s mixing technique and timing. Work through the full vessel, reaching the specified areas without unnecessary whipping. If the process calls for transferring to a second clean cup, prepare it in advance.

Putty systems require their own method. When considering Alumilite Amazing Mold Putty in the 2/3 lb size, use its current instructions rather than adapting a liquid-rubber technique. Prepare the master and workspace before combining any components.

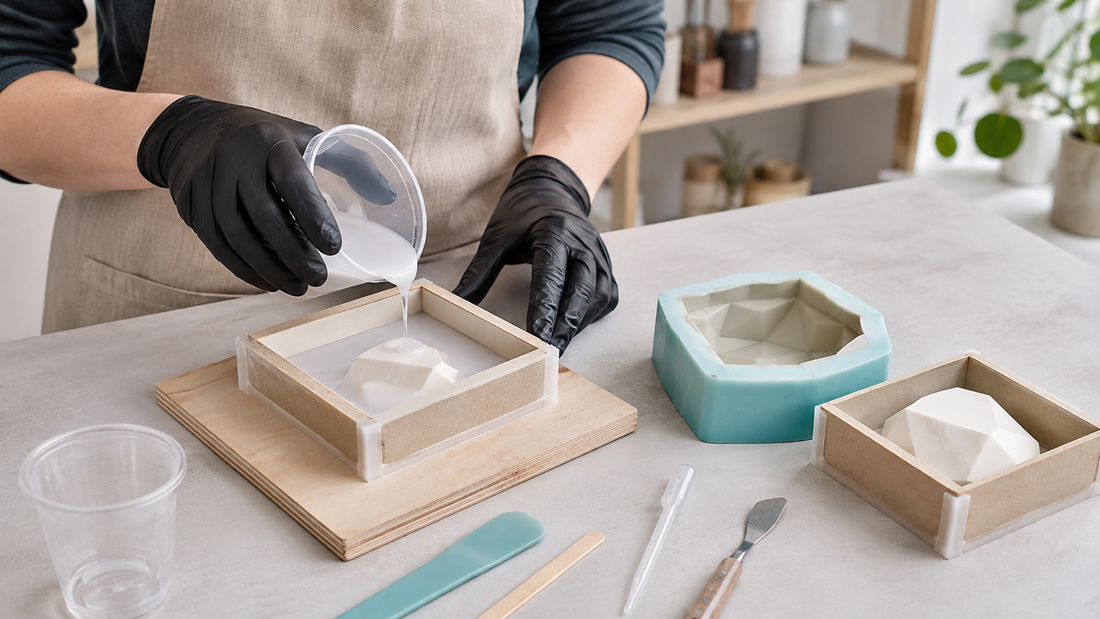

Pouring directly onto delicate detail

A forceful pour can trap air against the master, move an unsecured object or disturb fine surface features. Controlled placement is more useful than filling the mould box as quickly as possible.

Follow the stated pouring method and direct the material as recommended. Watch narrow gaps, recesses and high points where air may remain. Use only bubble-management methods approved for the material and setup.

Do not introduce heat, vacuum, pressure or vibration simply because a general tutorial suggests it. Each method requires suitable materials, equipment and safety controls.

Demoulding before the material is ready

An exposed surface may feel firm while deeper or enclosed areas are not ready for handling. Premature removal can tear detail, distort the mould or damage the master.

Follow the product’s stated demoulding guidance under the required conditions. Release the master gradually, supporting both it and the mould. Do not pull from a delicate projection or use a sharp tool against the mould unless the instructions expressly require an appropriate cutting method.

Demoulding and full readiness for use may be different stages. Confirm when the mould can accept casting material rather than assuming it is ready immediately.

Failing to inspect the first mould before casting

A new mould should be examined before a full production batch. Look for incomplete areas, trapped air, distortion, contamination and damage from removing the master.

If a fault is present, decide whether it can be addressed through an approved method or whether the mould should be remade. Repeatedly casting into a known defect simply reproduces it.

Where the instructions recommend a mould release or other preparation, apply the specified product and method. Do not assume that every mould and casting-material pairing needs the same treatment.

Treating all casting compounds like resin

Mineral casting compounds and resin systems may have different measuring, mixing, pouring and finishing requirements. A familiar resin routine should not be transferred without checking.

The Alumilite HydroCast Mineral Casting Compound Starter Kit should be used according to its own current documentation. Confirm the required equipment, proportions, preparation and handling before beginning.

Colourants and inclusions also need separate compatibility checks. A pigment suitable for one resin system is not automatically suitable for a mineral compound or mould-making material.

Making a production mould from an untested design

A single attractive casting does not prove that a mould is ready for repeat production. The process may still be awkward, the mould may be difficult to support or the finished piece may require too much correction.

Run a modest trial and record the result. Check:

• whether the mould remains level and stable;
• how easily the cavity fills;
• where air tends to collect;
• whether the casting releases without damage;
• how much finishing is required;
• whether the finished dimensions are consistent.

Scale up only when the method is repeatable and remains within the manufacturer’s guidance.

Skipping batch and mould records

When several variables change, memory is unreliable. Give each mould a simple identifier and record the mould material, date made, master preparation, casting materials used and any genuine changes observed over time.

For each casting, note the product, batch quantity, additives, mould preparation and result. These records help separate a mould fault from a measuring, mixing or material problem.

A careful mould protects every casting that follows

Define the project before selecting materials, prepare the master thoroughly and plan how it will release. Build a stable mould box, measure exactly as directed and inspect the cured mould before committing to a full batch. Moulding rewards careful decisions early; casting then becomes far easier to control and repeat.
